Description

Specification

Model No: K07

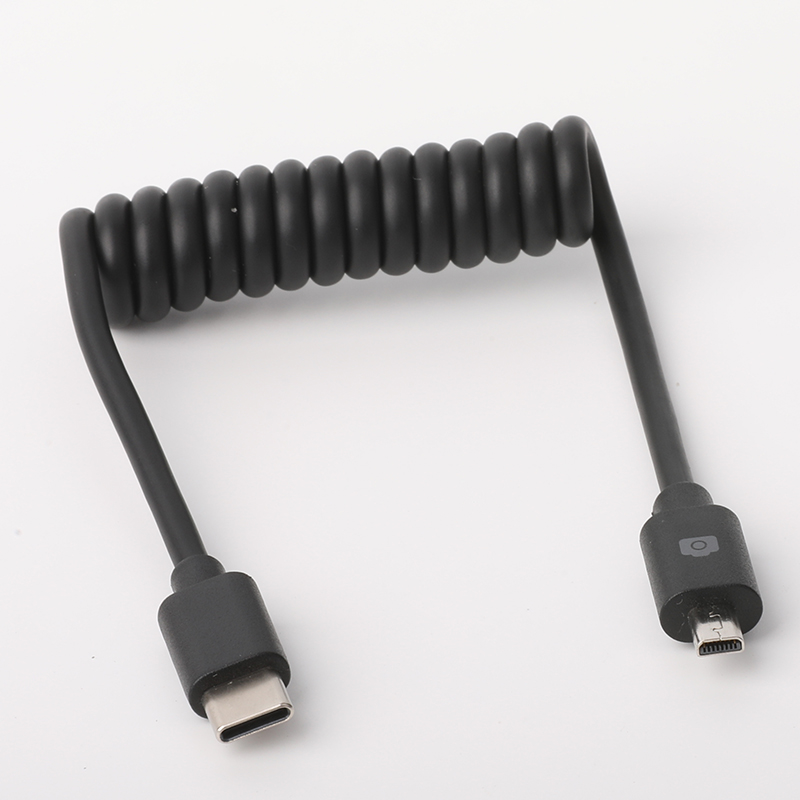

Product name: Fast Charging Mini 5P to Type C Spring Wire
①Outer mold: Black PVC material/45P/compliant with
material ROHS2.0, REACH, PAHs, SCCP,Phthalates regulations
②Inner mold: PP S2040
material 11 D2040
③TypeC/M TYPE\C2.0 stretch shell, gold-plated terminal 1u\Black
rubber core\nickel-plated stainless steel shell\with 5.1K
resistor,(shell and ground short circuit)
④Mini 5P Ultra-thin three-piece set\black rubber core\gold-plated 1U
iron shell\nickel-plated\front five and back four L = 23.5MM
⑤Cable 28AWG(7/0.12TC)*3C (red, white,green)HDPE insulation ID:
0.8MM+D(10/0.1TC)+al luminum foil+(16/2/0.1TC)+sheep
paper+black TPU 75A semi-matte OD: 3. 5±0.1MM/spring
wire/spring section length:50±10MM
