Specification

Model No: K13

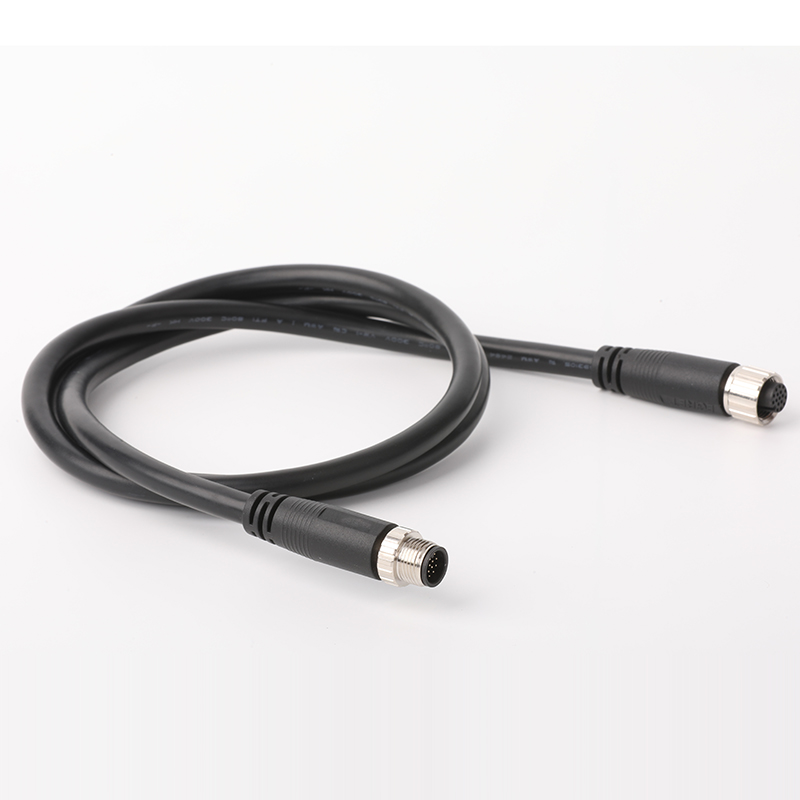

Product name: M12-17P A type male waterproof connector to female cable assembly
②Plastic material:LD-PE Transparent inner mold material
③Connector:M12-17PIN female waterproof connector，PIN needle gold-plated, equipped with copper alloy nickel-plated nut, copper alloy nickel-plated shield, rubber core material: nylon PA66, red silicone waterproof ring
④Connector:M12-17PIN A type male waterproof connector，PIN needle gold-plated, equipped with copper alloy nickel-plated nut, copper alloy nickel-plated shield, rubber core material: nylon PA66
⑤Cable1:UL2464 (26AWG*1P+AL-MY)*3C+26AWG*9C+AL-MY+144/0.10TC Bylon Braiding, black 60p flame retardant PVC outer cover, outer diameter 8.0mm

Performance Requirements：
1. 100% electrical testing of finished products, and There must be no electrical defects such as open circuit, short circuit, misalignment etc.
2. Test conditions: DC300V, 0.1S; insulation resistance ≥ 10MΩ, conduction resistance ≤ 5Ω
3. Working temperature: -25~85℃
4. Appearance requirements: There should be no defects such as glue punching, broken skin, scratches, lack of glue, damaged core wires, etc., and no obvious mottled appearance.
