Description

Specification

Model No: K10

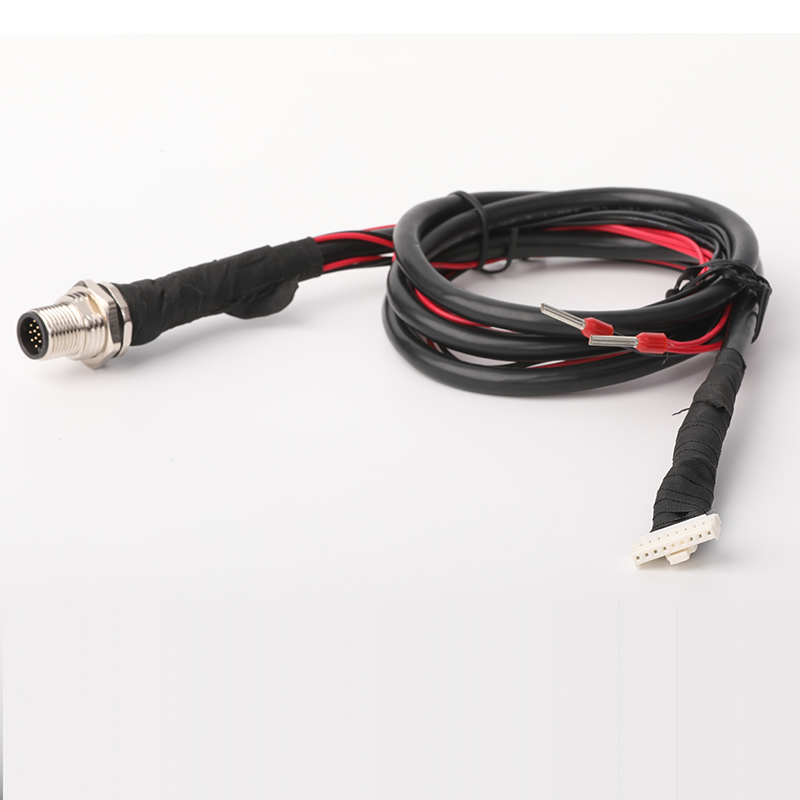

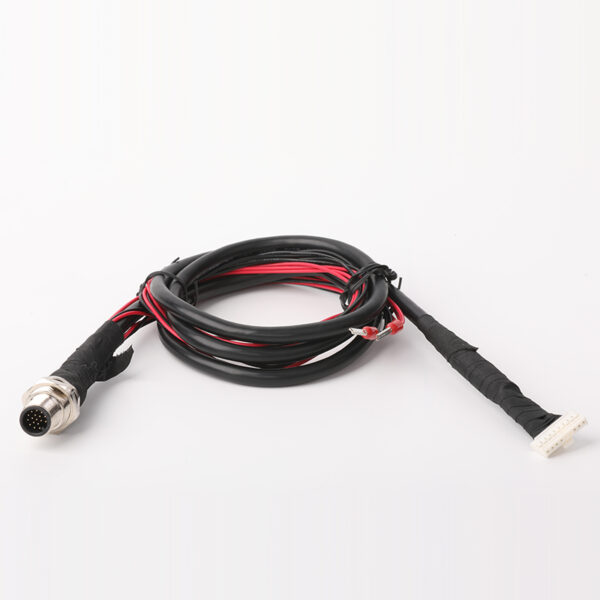

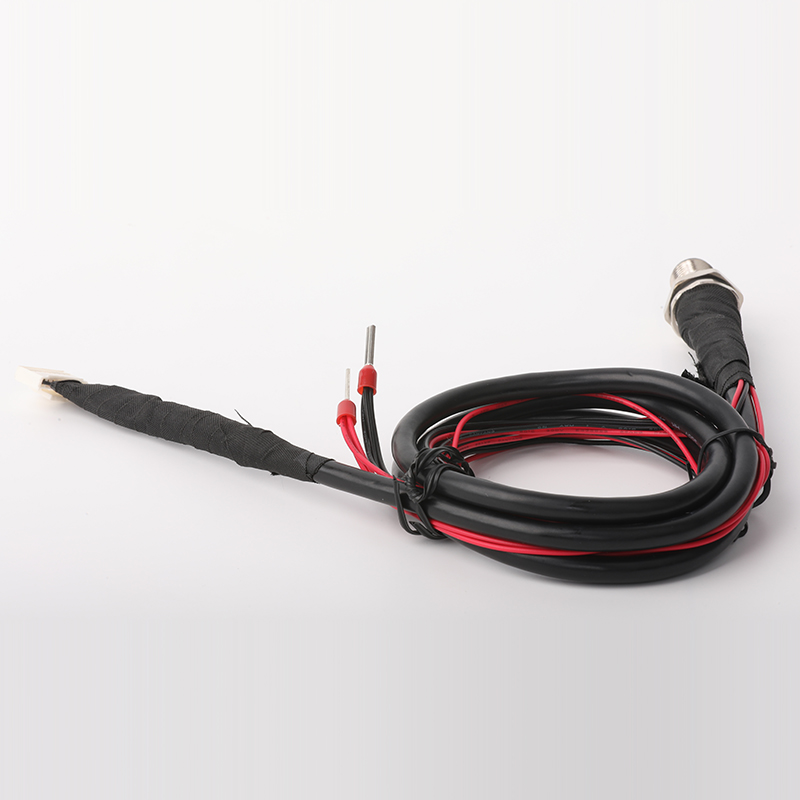

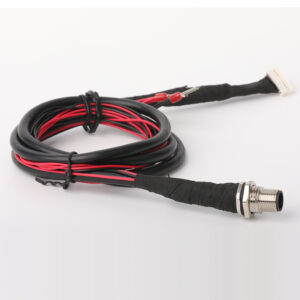

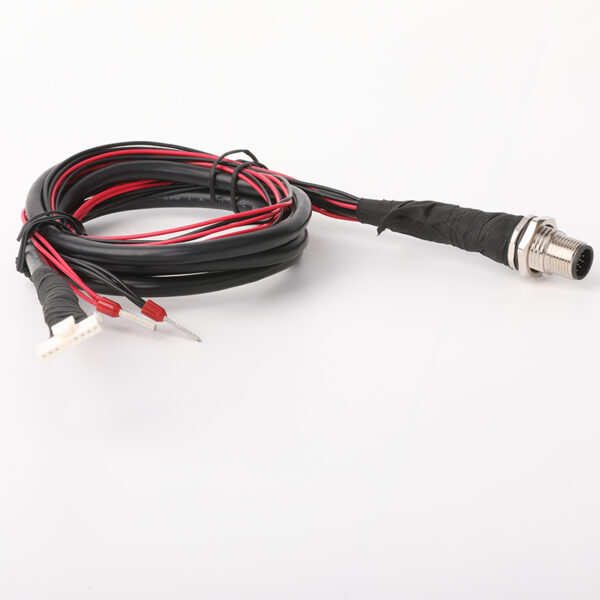

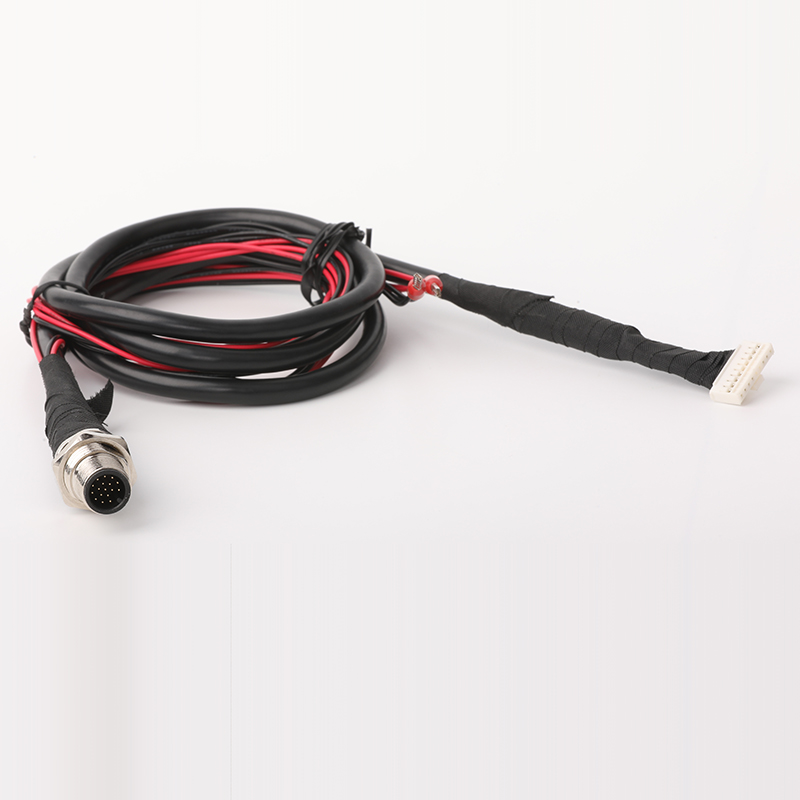

Product name: M12-17P Waterproof board end front lock male connector wire harness
①Plastic shell:HY2.0-9P white connector
②Terminal:HY2.0-T Phosphor bronze tinned terminals
③Connector:M12-17PIN waterproof male connector，PIN needle gold-plated, hexagonal nut (thread PG9), copper alloy, nickel-plated, M12 male front lock plate end housing, copper alloy, nickel-plated, rubber core material: nylon PA66, 16*2.0mm silicone waterproof ring
④Cable:UL1007 26AWG electronic wire，Red，Black L=0.71m
⑤Cable:UL2464 (26AWG*1P+AL-MY)*2C+26AWG*3C+AL-MY+128/0.10TC Braiding,black 60P flame retardant PVC outer jacket, outer diameter 6.0mm

Performance Requirements：
1. 100% electrical testing of finished products, and There must be no electrical defects such as open circuit, short circuit, misalignment etc.
2. Test conditions: DC300V, 0.1S; insulation resistance ≥ 10MΩ, conduction resistance ≤ 5Ω
3. Working temperature: -25~85℃
4. Appearance requirements: There should be no defects such as glue punching, broken skin, scratches, lack of glue, damaged core wires, etc., and no obvious mottled appearance.
5. Terminal pulling force complies with UL486A standard
